Automatic Vending ice cream machine

Product specificatio:

HM766C,HM766S,HM736S,HM931S,HM116S Machine Comparison Table
Model Number	HM766C	HM766S	HM736S	HM931S	HM116S
Feature	Wheel-mounted floor
Advertisement	27 "advertising TV screen	led advertising screen 502X378mm			NO
Function	Pre-cooling , Air Pump, Mixer, Counter, Heat Treatment, Defrosting, Disinfection, Remote monitoring system
Automation	full automatic
Product Offering	2 Flavour mix ice cream or frozen Yogurt	2 Flavour mix ice cream or frozen Yogurt	2 Flavour mix ice cream or frozen Yogurt	1 Flavour Sundae	1 Flavour Ice Cream or Frozen Yogurt
ingredients	3 kinds of topping & 3 kinds of jame	3 kinds of topping & 3 kinds of jame	NO	3 kinds of jam	NO
Hopper capacity	13L x 2 can made 240 cups ice cream (100g/cup )	13L x 2 can made 240 cups ice cream (100g/cup )	13L x 2 can made 320 cone ice cream (80g/cone )	17L x 1 can made 70 cups Sundae	13L x 1 can made 120 cups ice cream (100g/cup )
Production Capacity	50-60L/H	50-60L/H	50-60L/H	50L/H	40L/H
Cooling Type	Air cooled
Voltage	220V50/60Hz,1phase

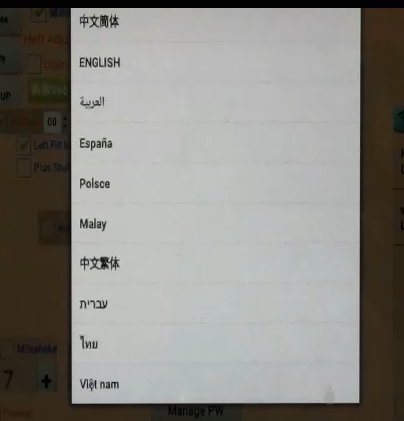

language	Chinese ,English , Poland , Saudi Arabia, Malaysia ,Thailand, Spain,Germany,Malaysian

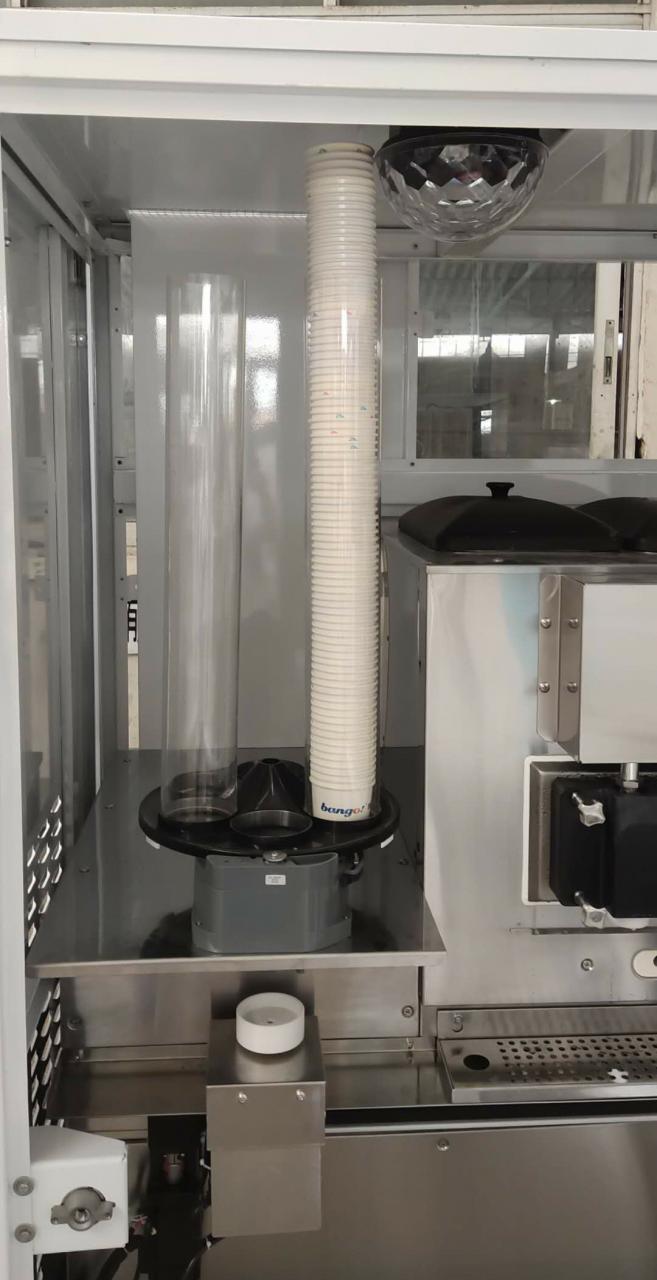

Remaining amount of cup	300pcs cup	300pcs cup	180pcs waffle cone	70pcs cup & 80pcs spoons	180pcs cup
payment system	accept bill , coin , exchange coin , credit card (Provide credit card interface) ,online pay
Remote monitoring system	you can use your mobile to check the machine station , sell out , Lack of material to remind
Electricity consumption	6 to 7 degrees a day	6 to 7 degrees a day	6 to 7 degrees a day	4 degrees a day	3 degrees a day
Guarantee Policy	18 months guarantee for cooling system
photoes

Product Features :

inch advertising screen

10.1 inch touch screen tablet-like controller with Android system

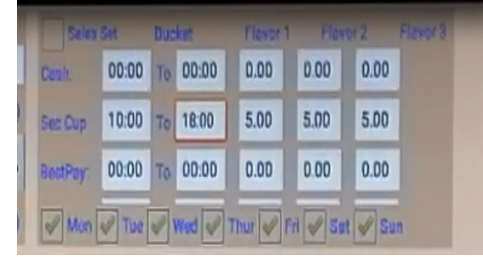

Machine states(hopper and cylinder tempera ,rationed setting,production process,error , Material level alert,Price)

Data checking(sales volume)

Dispensing controlling

Machine settings

Intelligent operation

Function send to mobile phone alert

the machine inside have more function , that can help you to save more Artificial cost :

?Pre-cooling system maintains mix below 5℃ during auto & standby modes.

?Air-pump delivers the mix with certain amount of air to the freezing cylinders.

?Mixer keeps mix uniformity in the hoppers.

?Heat-treatment provides a daily cleaning routine to maintains product according to quality and safety standards up to two weeks before complete cleaning with disassembly.

?Defrosting

– Production defrosting rapidly melts the product in both cylinders and then goes back to production mode to reproduce.

– Washing defrosting rapidly melts the product in the cylinders that significantly reduces leftovers before cleaning.

?Disinfection

– Special function that makes sanitizing process semi-automatic and easy.

– No disassemble the machine to clean the throat block unit, air-pump unit, beater and cylinder.

?Counter allows the operator to view number of servings dispensed.

Product Advantage:

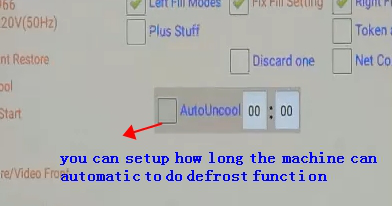

Defrosting : when the machine are working 2 hour not sell out ice cream , cylinder some time will be block , we setup the system automtic defrost , so the machine can still working and defrost inside ice and made good quality ice cream or frozen Yogurt .

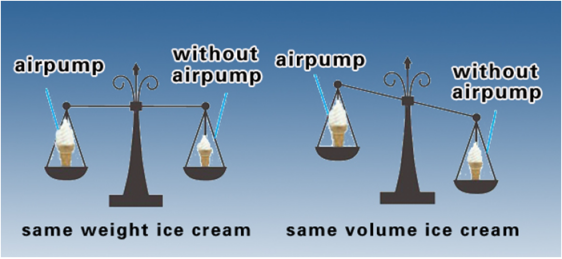

Air pump : adjustable overrun from 20% to 80% , reduce the generation of ice crystals,made frozen yogurt(ice cream ) taste smooth and look white ; reduce the use of raw materials, increase profits .

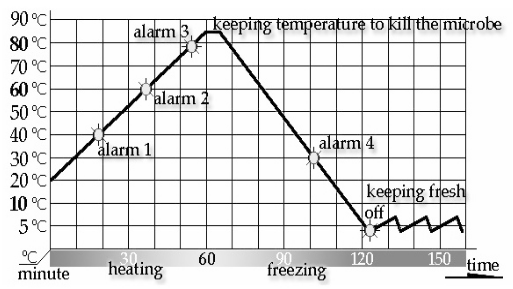

If you sell out ice cream at night the system automatic setup Pasteurization : Can kill the bacteria that produce inside the machine from -5℃ → 65℃→ -5℃process ( disinfect the loading cylinder and raw material inside , then refrigerate to booking status ). so you can keep the machine each 14 days one time .

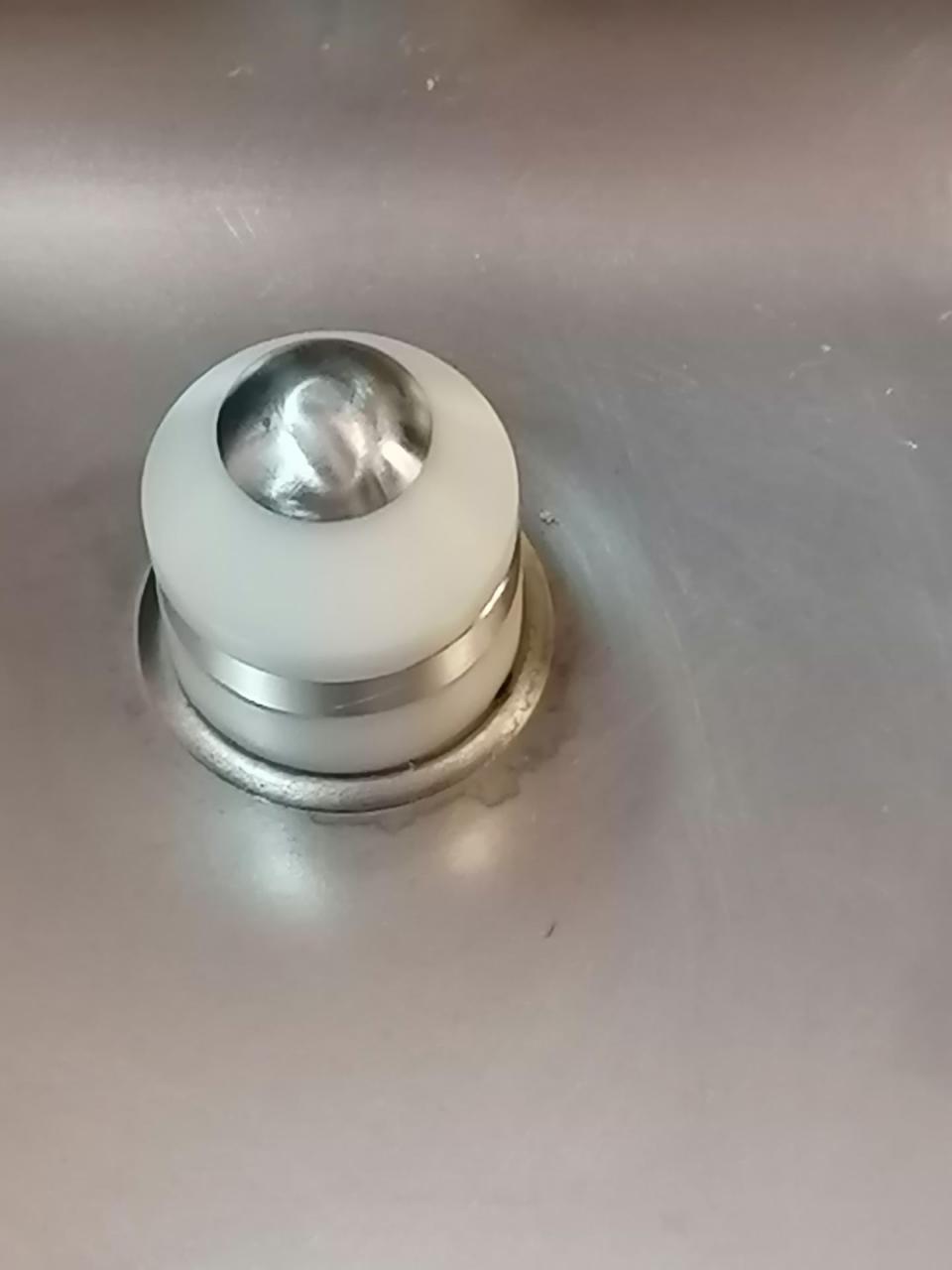

Leave censer have Second stage, the first stage of missing material level alarm, the second stage of automatic shutdown. When you receive the first message , you have some time for you to add material no need let the machine stop to work it .
